Okay, I have had to redo this thread 2 times because of stupid internet explorer. Here goes nothing.
Anyway, I was searching through my scraps and unused guns, when I found these two and decided to create a blaster that would maximize functionality and minimize any weaknesses/drawbacks. This took a relatively short time work-wise, granted that your bbbb and at3k are already modded.
The bbbb is a good nerf gun, but with a coupler it can support almost every barrel type and be so much more.
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0022](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0022.jpg)

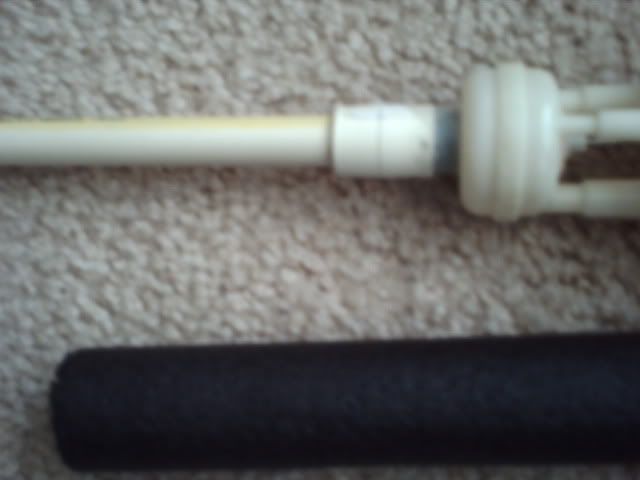

Internals with coupler, ignore the black thing, that comes later.
Now, we know the bbbb can support a wide range of ammo types and has great ranges, but has a crappy rof. The at3k on the other hand, has a faster rof even if it has lower ranges. Combining the two will create a powerfull gun that will have no major weaknesses. Before doing this mod, you should already have replaced the barrels and removed the goo gauge of the at3k. I recomend putting a coupler on your bbbb.
You will need:

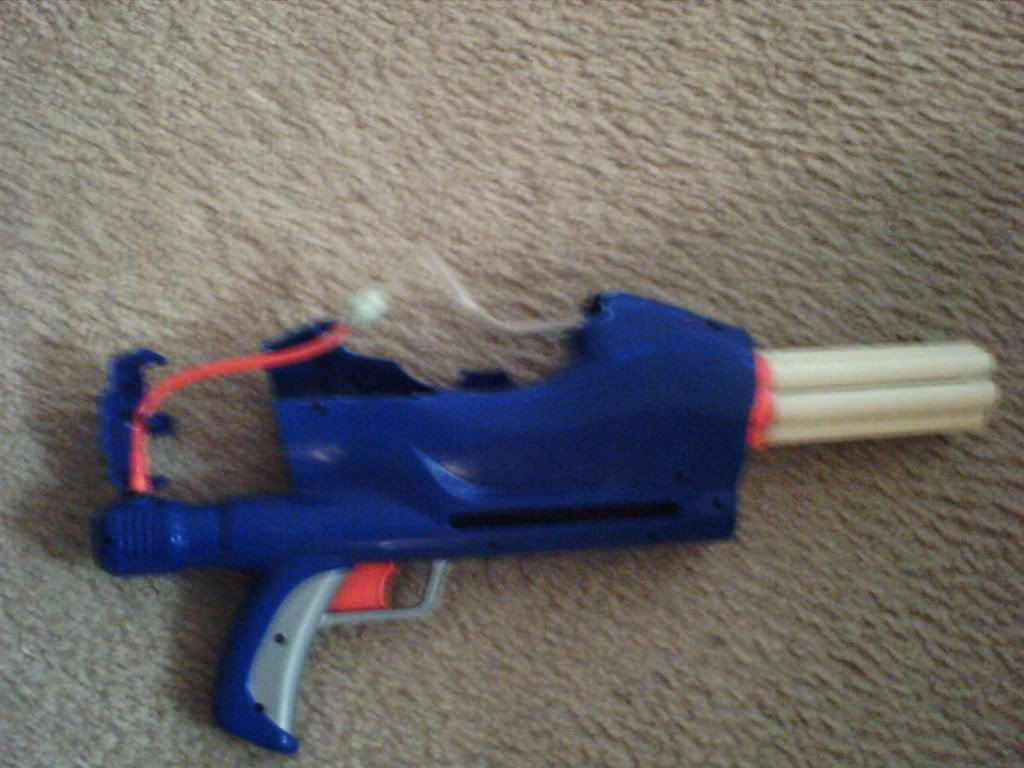

You will need to cut the following like so:
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0018](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0018.jpg)
Pay attention to the side that is cut down more. This is what BOTH sides need to look like. The partially cut side is just to give you an idea of what has to be cut off of the stock 3k.
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0019](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0019.jpg)

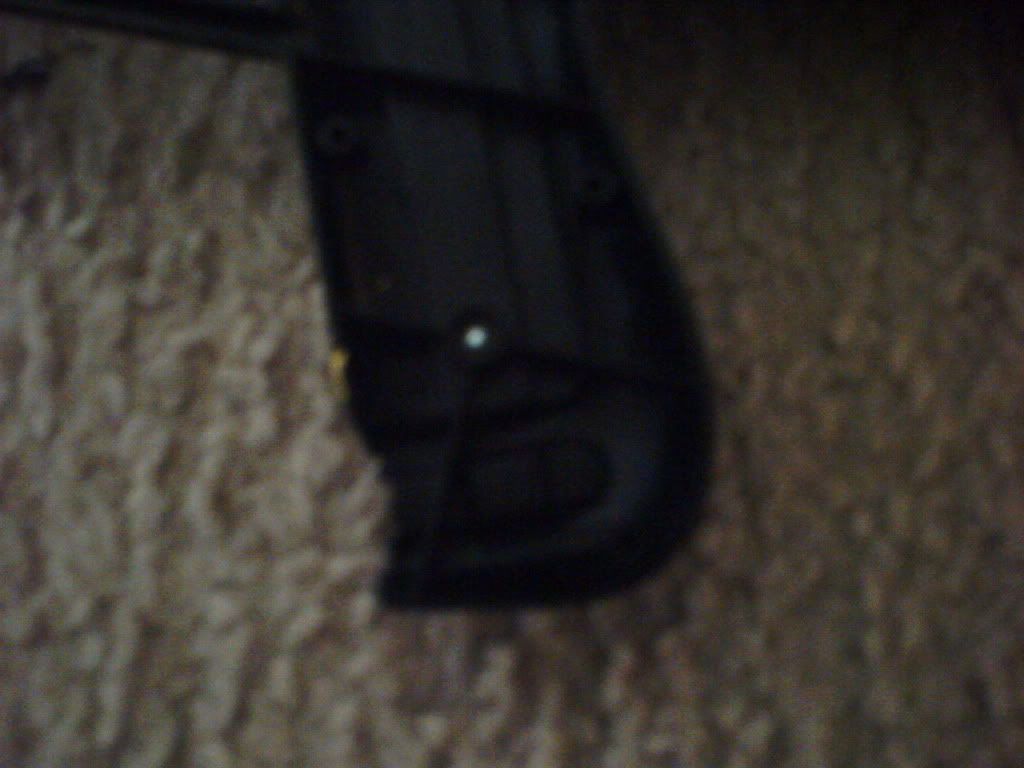

For the bbbb, all you have to do is cut down the handle a little.
Thats it! now you are ready to start gluing.
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0021](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0021.jpg)

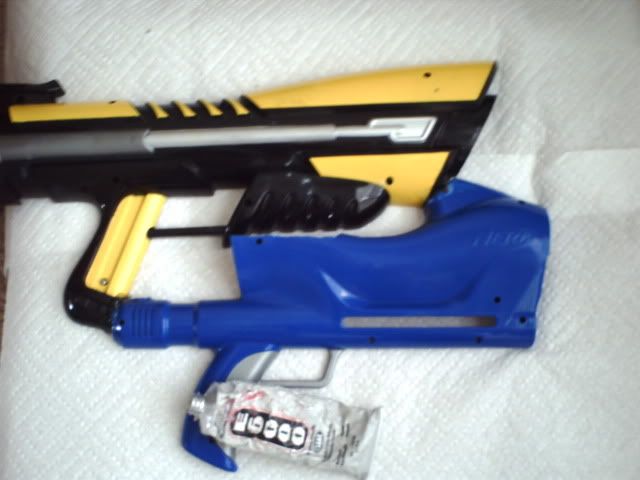

Make sure to glue the shell pieces together with the interior of the shells facing down. This keeps the guns centered and straight. I started with that glue in the bottom of the pic (it's basically like amazing goop), and added hot glue on after to make sure the shells didn't shift. Remember to reinforce both sides of each shell.

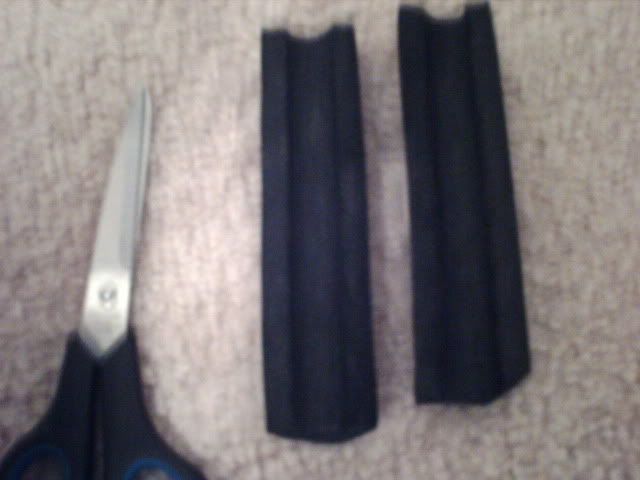

Next, grab that section of foam pipe insulatior and cut it lengthwise.
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0023](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0023.jpg)

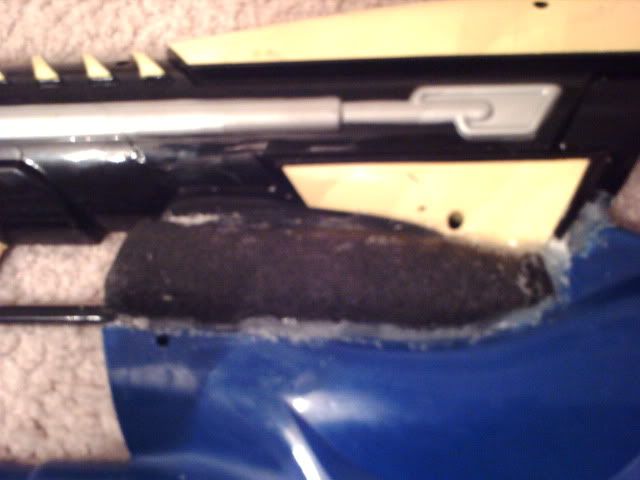

You might have noticed a gaping hole in your gun by this stage. Thats what these foam pieces are for. Glue them in where the hole is between the bbbb and at3k like so:
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0024](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0024.jpg)
If using hot glue, make sure the glue isn't too hot or it will melt the foam. It would be useful to have more of this foam to create rockets for the bbbb. I have made a few, but still need to test more designs. The rockets will fit securely on a cpvc barrel wraped in a few layers of e-tape.
once assembled, part of the tubing will be loose. This should be glued to the side of the bbbb below the trigger (see next pic)

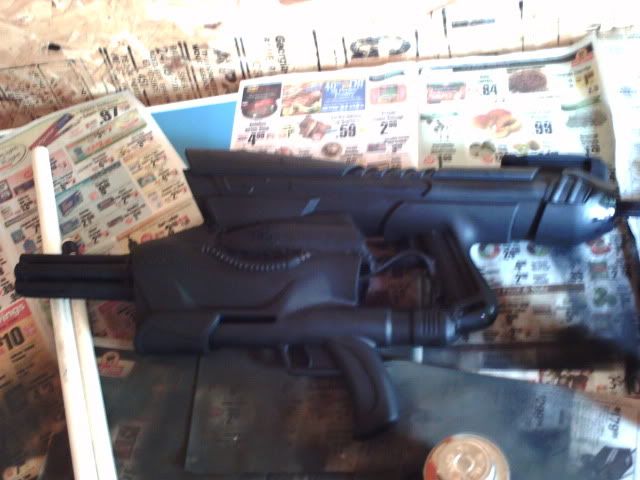

The finished product with base coat of paint:
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0027](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0027.jpg)
![Air Tech 3000 and Buzz Bee Big Blast Integration/Modification PICT0025](https://2img.net/h/i561.photobucket.com/albums/ss56/durkadurka2323/PICT0025.jpg)
The mod leaves just enough space for me to grip the bbbb trigger without real problems. The gun is pretty light for its size, and it isn't too large. I won't post ranges because i haven't done anything new to the internals of eah gun. The ranges are typical unplugged pump ranges (from guesstimation). The aim of this mod wasn't to create new ways to boost the guns' performance, just to maximize on the prexistant mods for each gun.
The bbbb can be used in multiple situations as it can support multiple barrel setups, and the 3k is a reliable backup. Remember, when you integrate a secondary into your primary, you can't get a decent balance of rof and range to make it worthwhile. The mav has rof but sucks in range. The nite finder has range, but slower rof. With the integration of a 3k, I can get a rof slightly slower than a mav with ranges that are better than the nitefinder.
On another note; silencers are much easier to make if you use the 3/8" foam pipe insulator. Just simply glue the foam over the drilled barrel, presto! Silencer! I love the look of silencers even if they do almost nothing to help nerf guns.
A quick question: Is there anyway to post pics without having to drag them all the way fromt the top of the page to the desired location?
Thats all folks!!!
